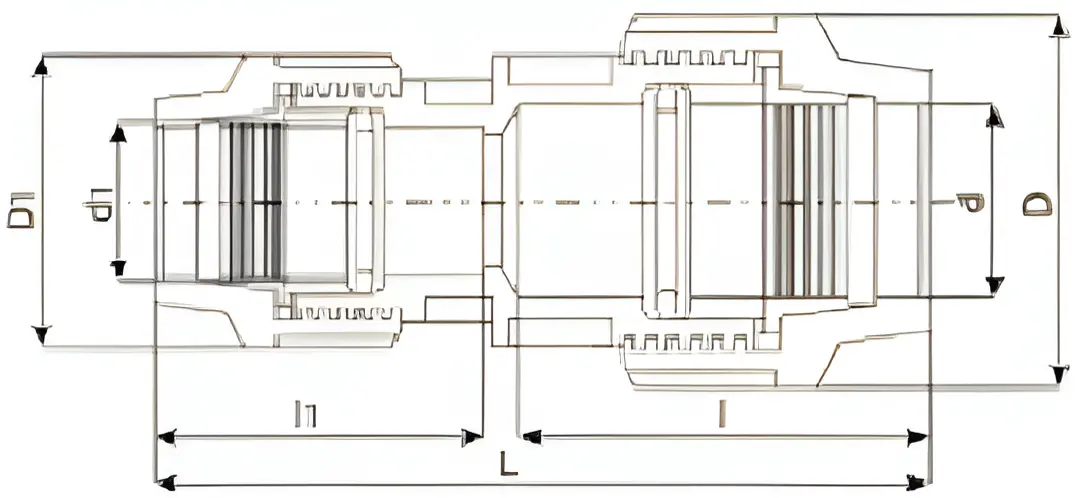

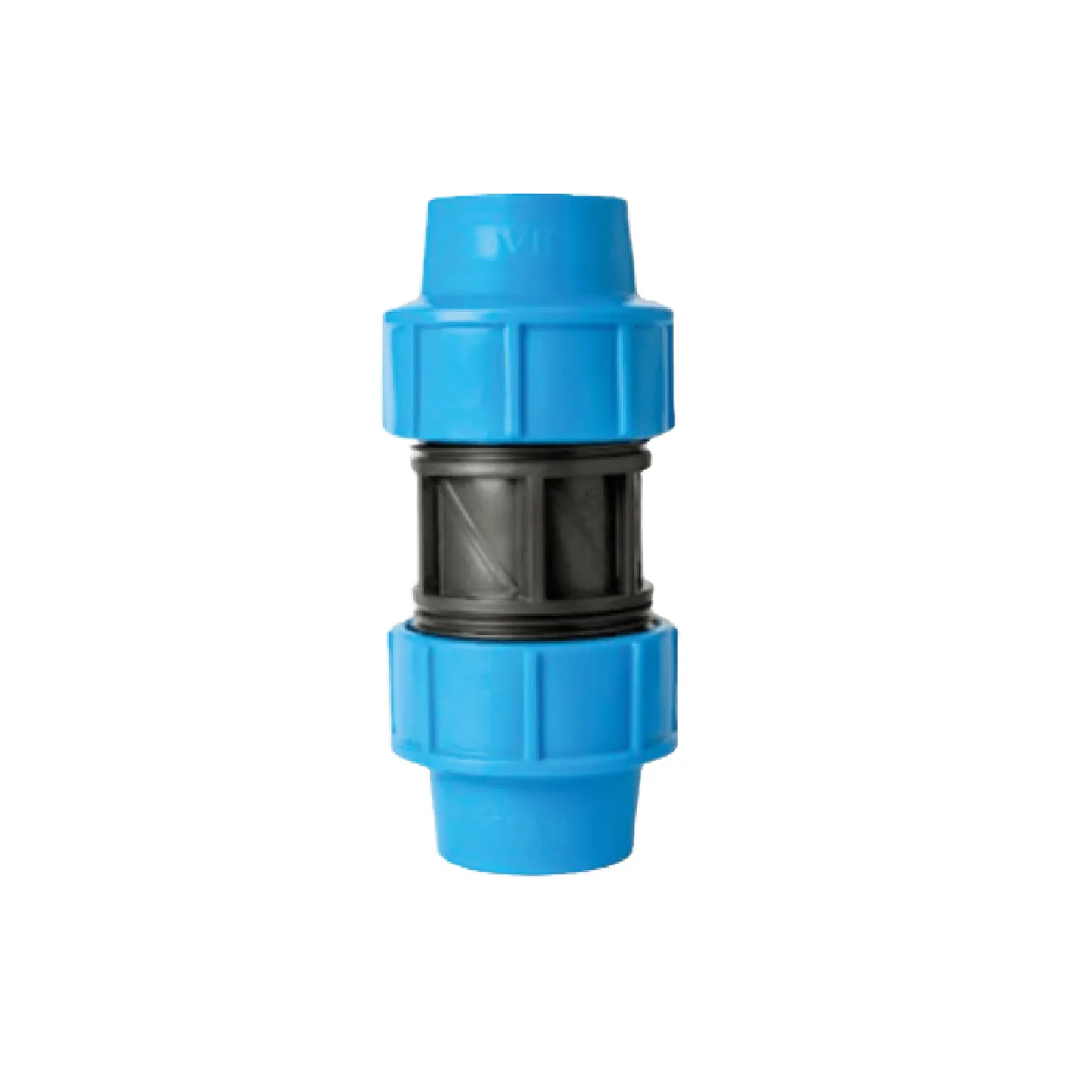

Polyprpylene Compression Reducing Coupling
Polyprpylene Compression Reducing Coupling are made from the raw material and are available in size from 25mm o.d. x 20mm o.d. x90mm o.d. this fittings is designed to connect two lengths of Polyprpylene (PE) pipe together. with one diameter smaller then the order, which can be done assembly and installation take place without need of any adhesives or welding material.
| CODE NO | SIZE | PCS/CTN | PCS WEIGHT-KGM | Carton Size |
|---|---|---|---|---|
| 50023225 | 32 x 25 | 120 | 0.135 | 50x34x28 |
| 50024025 | 40 x 25 | 85 | 0.162 | 50x34x28 |
| 50024032 | 40 x 32 | 85 | 0.213 | 50x34x28 |
| 50025025 | 50 x 25 | 55 | 0.295 | 50x34x28 |
| 50025032 | 50 x 32 | 56 | 0.311 | 50x34x28 |
| 50025040 | 50 x 40 | 48 | 0.370 | 50x34x28 |
| 50026332 | 63 x 32 | 30 | 0.482 | 50x34x28 |
| 50026350 | 63 x 50 | 22 | 0.632 | 50x34x28 |
| 50027525 | 75 x 25 | 30 | 0.785 | 50x34x28 |
| 50027532 | 75 x 32 | 30 | 0.796 | 50x34x28 |
| 50027550 | 75 x 50 | 22 | 0.878 | 50x34x28 |
| 50027563 | 75 x 63 | 18 | 0.960 | 50x34x28 |
| 50029025 | 90 x 25 | 15 | 1.100 | 50x34x28 |
| 50029032 | 90 x 32 | 15 | 1.170 | 50x34x28 |
| 50029050 | 90 x 50 | 10 | 1.250 | 50x34x28 |
| 50029063 | 90 x 63 | 10 | 1.292 | 50x34x28 |
| 50029075 | 90 x 75 | 10 | 1.740 | 50x34x28 |
| 500211050 | 110 x 50 | 6 | 1.800 | 50x34x28 |
| 500211063 | 110 x 63 | 6 | 1.877 | 50x34x28 |
| 500211075 | 110 x 75 | 6 | 1.977 | 50x34x28 |
| 500211090 | 110 x 90 | 6 | 2.077 | 50x34x28 |
